ASP.NET - .net file upload into server with uploaded percentage

Asked By Naveed Mohammed on 13-Nov-11 10:50 PM
can any one tell me how to i show uploading file this much is upload and balance is this much like percentage

Thanks
Younus
Jitendra Faye replied to Naveed Mohammed on 13-Nov-11 11:00 PM
Follow these steps-





The upload widget includes the following:

  • File Upload interface (Default.aspx)
    • IFRAME (which contains upload engine page UploadEngine.aspx)
    • Upload button (that will allow user to upload file on server)
    • Display statistics for uploading file (Filename, Status, Progress and Transferred Bytes)
    • Grid (that will display list of uploaded files)
    • Hidden field (it will monitor and refresh file list whenever file was successfully uploaded on server)
  • Upload Engine (UploadEngine.aspx)
    • File Upload control

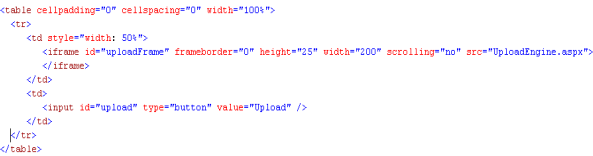

Page Structure (Default.aspx)

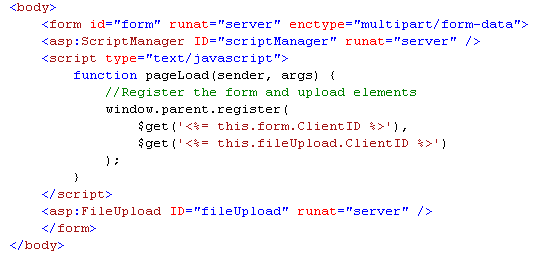

Upload Engine structure (UploadEngine.aspx)


Page execution flow

During page loading, it will automatically register click event for Upload button.

  1. Choose File to upload

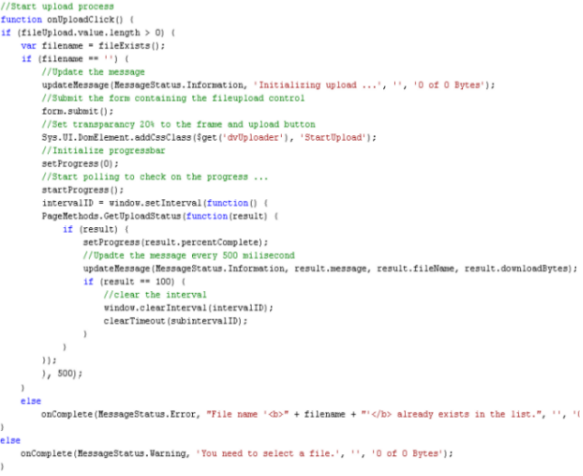

  2. Clicking on Upload button (it will automatically register click event for Upload button)
    • The following function is checking basic validation on client site like
      • File Upload should not be empty
      • File name should be unique
    • Executing (UploadEngine) submit event using JavaScript
    • During execution of (UploadEngine) two processes are executing simultaneously
      • Page will maintain File Upload details in session with the help of UploadDetail class
      • Every 500 milliseconds, the PageMethod will call and display progress of current uploading file with Size and Percentage value
    • Display continuous progress using StartProgress function

    3. PageExecutionFlow_2.png

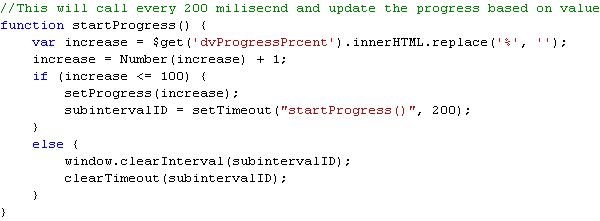

  3. Display real time progress

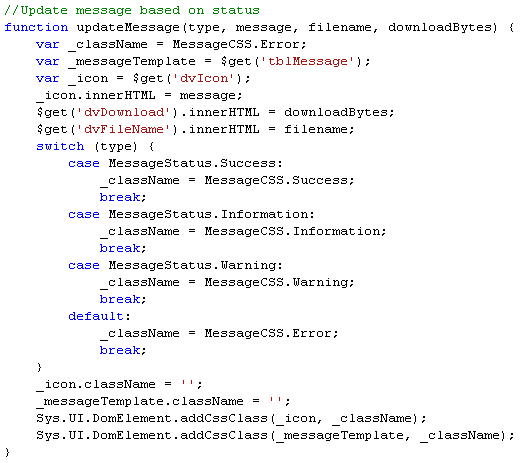

  4. Update message based on result, result may from following:
    Success Information Warning Error

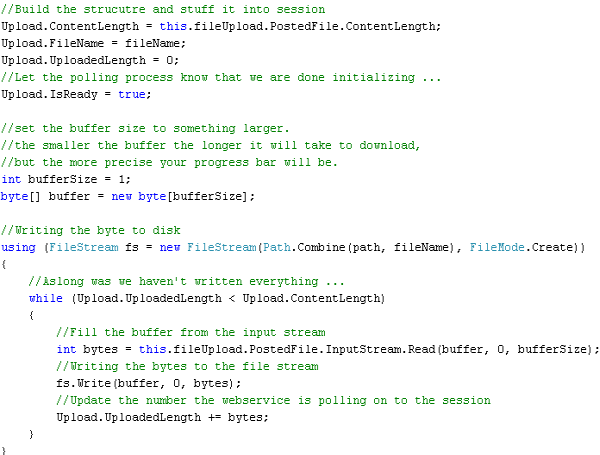

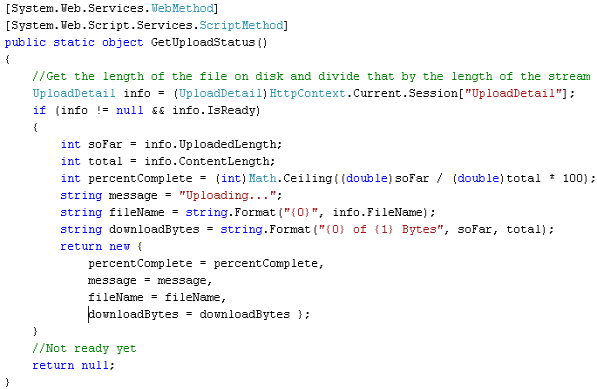

  5. The two processes are executing simultaneously on server side are as follows:
    • Upload Engine


    • Default

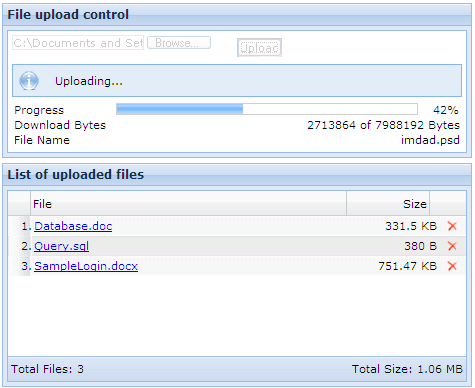

  6. During file upload processes, the following screen would be appear:

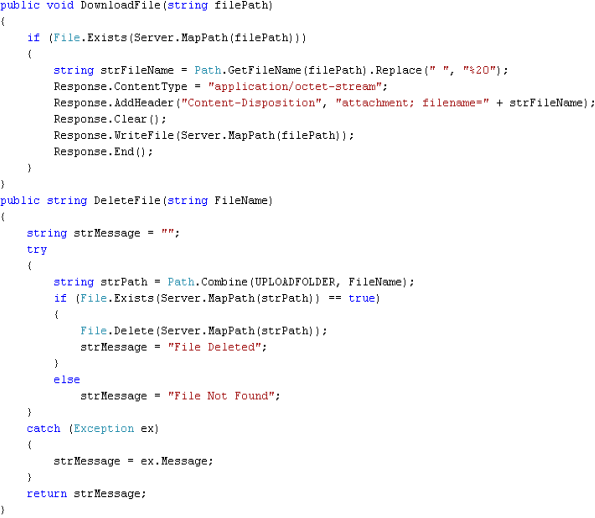

  7. Following functionality is also available in Grid:




Suchit shah replied to Naveed Mohammed on 14-Nov-11 12:25 AM
Here are the quick tutorial for that task

http://ajaxuploader.com/
http://www.codeproject.com/KB/webforms/FileUploadWithProgrss.aspx
http://www.codeproject.com/KB/aspnet/FlashUpload.aspx
